| Maximum Workpiece Size (LxWxH) | 550x470x115 / 150 mm |
| Work Table Size | 450x400 mm |
| Maximum Workpiece Weight | 300 kgs |
| Drive & Servo | 5 axes AC Servo |
| Simulations Axis | X / Y / U / V (4 axes) |
| X/Y Axis Travel | ±21° |
| Z Axis Travel | 155 mm |
| U/V Axis Travel | 30/30 mm |
| Wire Diameter Range | Ø 0.1~0.3 mm |
| Max. Taper Angle (°)Workpiece Thickness | ±10° (60 mm) |
| Maximum Axes Load | 6 kgs |
| Conductivity | Automatic |
| Water Tank Capacity | 450 L |
| Net Weight | 1700 kgs |
| Dimension (LxWxH) | 1800x1900x1850 mm |
| Max. Taper Angle (°)Workpiece Thickness | ±10° (60 mm) |
Deprecated: Unparenthesized `a ? b : c ? d : e` is deprecated. Use either `(a ? b : c) ? d : e` or `a ? b : (c ? d : e)` in /home/soloedmc/public_html/libraries/quix/vendor/twig/twig/src/Node/Node.php on line 46
Deprecated: Unparenthesized `a ? b : c ? d : e` is deprecated. Use either `(a ? b : c) ? d : e` or `a ? b : (c ? d : e)` in /home/soloedmc/public_html/libraries/quix/vendor/twig/twig/src/Node/Node.php on line 202

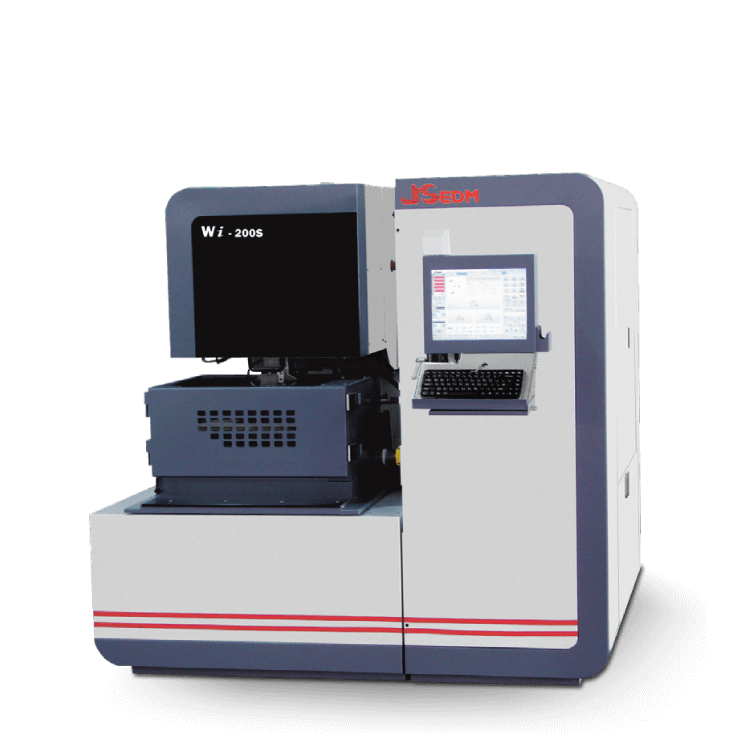

Máquinas de Alambre - Series Wi
Wi-200S
Submerge Type
User Friendly CNC control system
- Useful functions are added to simplify the positioning preparation before machining.
- Simple user interface, with an edit hot key zone for easy operation.
- Movable 3D animation allows user to inspect the cutting process at different angles.
- Various compensation functions have been designed to improve the quality of the product.
- Various ways of data transmitting, including using Ethernet, USB port, and RS232.
Más Información
-
Especificaciones
* Todas las especificaciones están sujetas a cambio sin previo aviso.
